Status labels

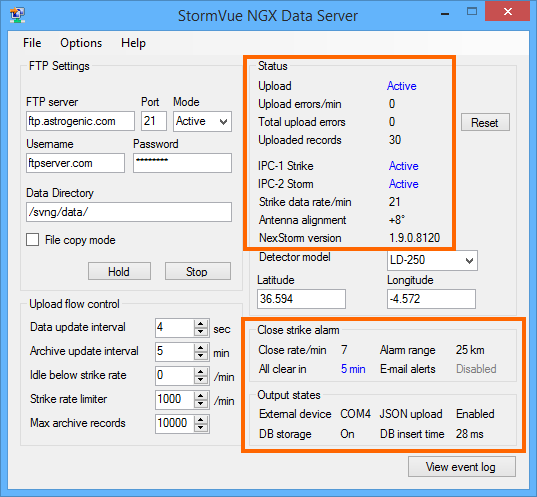

This page contains brief descriptions on the general meaning of the information presented in the various main window status indicators.
Status group
| Label | Information |
|---|---|
| Upload | Status of FTP upload or network file copy |
| Upload errors/min | Upload errors per minute counter |
| Total upload errors | Number of upload errors since start or last reset |
| Uploaded records | Number of uploaded records since last restart |
| IPC-1 Strike | Connection status to NexStorm IPC-1 strike data channel |
| IPC-2 Storm | Connection status to NexStorm IPC-2 storm data channel |
| Strike data rate/min | Rate per minute of strikes received over IPC-1 |
| Antenna alignment | NexStorm antenna alignment correction in degrees |
| NexStorm version | Version of installed NexStorm software |
Close strike alarm group
| Label | Information |
|---|---|
| Close rate/min | Rate per minute of strikes occurring within close alarm radius |
| Alarm range | Close strike alarm distance radius, km or mi |
| All clear in | Remaining number of minutes before All clear takes effect |
| E-mail alerts | Indicates if the e-mail alerting feature is enabled |
Further help links: Close strike alarm, E-mail alerts
Output states group
| Label | Information |
|---|---|
| External device | Shows whether an external device is connected |
| JSON upload | Shows if JSON formatted upload is enabled or not |
| DB storage | Shows if database storage has been enabled |
| DB insert time | Database performance indicator. Normal transaction times are around 30 ms |
Further help links: External device, Database storage and JSON upload
